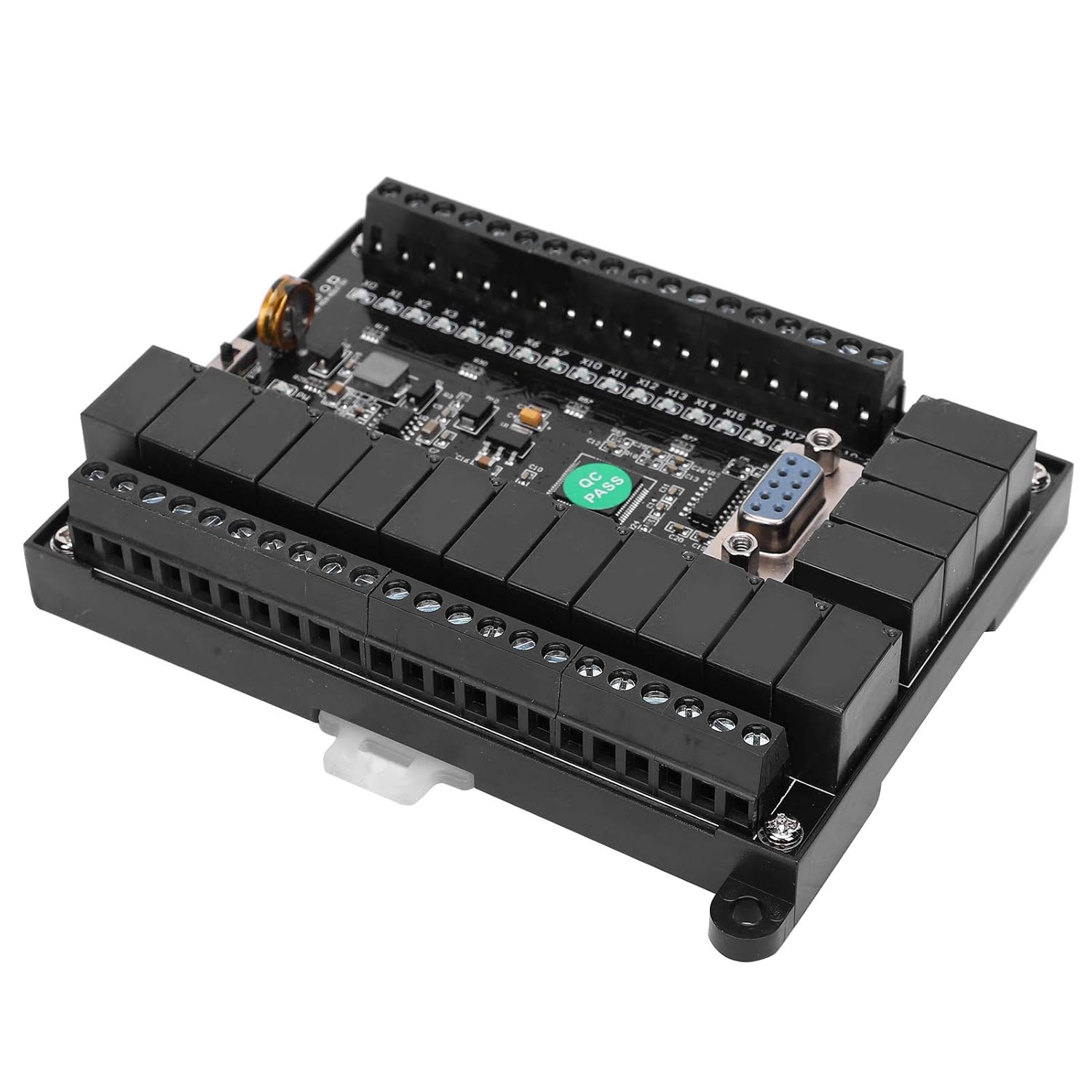

Placa de control PLC, módulo de retardo de relé de controlador programable con analógico, FX1N ‑ 32MR DC10‑28V, para equipos de control industrial, maquinaria de producción

Specification: Item Type: PLC Control Board Material: Plastic Model: FX1N-32MR Working Voltage: DC10-28 (V) Output Frequency: 10 (kHz) Maximum Memory Capacity: 8000 Steps Relay Life: 100000 Times The downloading program is slow. The length of the downloading program is 8000 steps by default. Actually, the program written by most customers will not exceed 2000 steps. Therefore, you can set it in the programming software to increase the download speed by 4 times. The Setting Method is As Follows: After clicking the + sign in front of the parameter in the program data list, the PLC parameter will appear, and then double-click the PLC parameter and the parameter setting interface will appear. In the parameter setting interface, set the memory capacity from 8000 to 2000 The programming line USB to TTL and USB to 232 driver are the same After installing the driver, a serial port will appear. Please select a baud rate of 9600 when downloading. This PLC series has 2 independent 232 serial port, one is 232 level 9pin port (2: TXD 3: RXD 5: GND), the other is TTL Level 4pin Port(1: GXD 2: TXD 3: RXD 4 : 5V), both of these port are programmable and connected to the touch screen. When programming, the 9pin port uses the USB-232 cable; the 4pin port uses the USB-TTL cable. When connecting the touch screen, the 232 level 9pin port is directly connected to the touch screen with a 9pin male to female wire (actually only 3 wires are used, namely 2-2, 3-3, 5-5). Size: Approx. 122mm / 4.8in, 87mm / 3.4in, 28mm / 1.1in Package List: 1 x PLC Control Board

• Special Design: PLC control board has been designed with multiple anti-interference, without fear of all kinds of harsh electromagnetic interference working environment
• Practical: The delay module is suitable for industrial control equipment in production machinery, industrial assembly lines, various machine tools and other industries, such as single process control devices
• Features: The relay output module is small in size, stable in structure, excellent in performance, practical in work, and can be used for a long time
• Application: PLC control module can be flexibly applied to various industrial automatic control occasions such as metallurgy, plastics, textiles, packaging, printing, building materials, woodworking, central air conditioning, etc
• Product Parameters: PLC programmable controller is easy to use, input high-speed pulse C235, C251, Y0 can send 10K pulse, compatible with FX1N series
